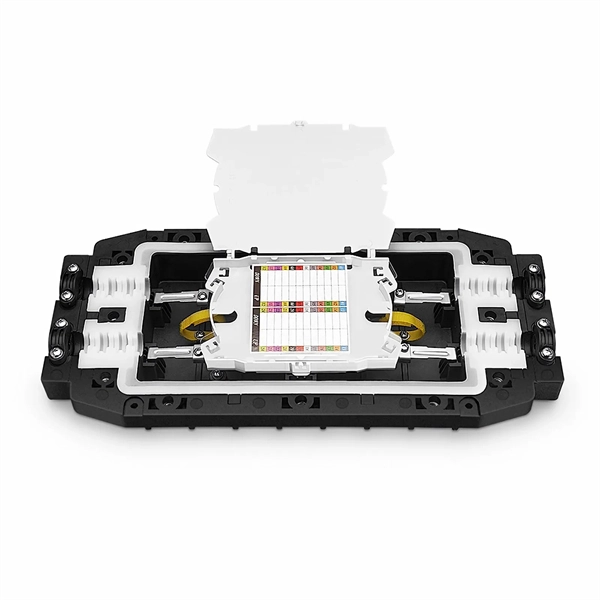

How to lay optical cables for photovoltaic ring networks

Proper installation of optical fiber in PV ring networks ensures reliable communication, minimal signal loss, and long-term system performance.Planning and Preparation

Before laying fiber optic cables, conduct a site survey to map the PV array layout, inverter locations, trackers, and junction boxes. Determine the cable type: single-mode fiber is preferred for long distances across utility-scale solar farms, while multi-mode fiber may be used for shorter runs within a subarray . Obtain necessary permits and ensure compliance with safety and electrical standards.

Routing and Installation

• Cable Pathways: Use conduits, trays, or aerial supports to protect fiber from mechanical damage, UV exposure, and rodents . Avoid sharp bends and maintain minimum bend radii to prevent signal loss .
• Ring Network Topology: In a ring network, cables form a loop connecting all critical devices. This topology provides redundancy; if one segment fails, communication can continue in the opposite direction .
• Pulling and Blowing: Fiber can be installed by pulling through conduits or using air-blown techniques for long runs. Ensure tension limits are not exceeded to avoid microbends or fractures .

Cable Management

• Clips and Fasteners: Use UV-stabilized clips, fir-tree, or edge clips to secure cables without drilling panels . Avoid oval lashings and tight bindings that can stress the cable.
• Labeling and Organization: Group and label fibers by string, inverter, or junction box for easy maintenance and troubleshooting . Color-coded jackets and clear labeling improve operational efficiency.
• Environmental Protection: Protect cables from sunlight, temperature extremes, and moisture. Use conduits or armored jackets where necessary .

Testing and Commissioning

• Loss Measurement: Use an Optical Time-Domain Reflectometer (OTDR) to measure insertion loss and verify continuity .
• Documentation: Record cable routes, splice points, and test results for future maintenance.

Maintenance Considerations

• Regular inspections prevent degradation from UV, mechanical stress, or animal interference .
• Ensure spare fibers or loops are available for future expansion or repairs. By following these steps, optical fiber in PV ring networks will provide reliable, high-speed communication for monitoring inverters, trackers, battery storage, and security systems, ensuring optimal performance and longevity of the solar installation .
