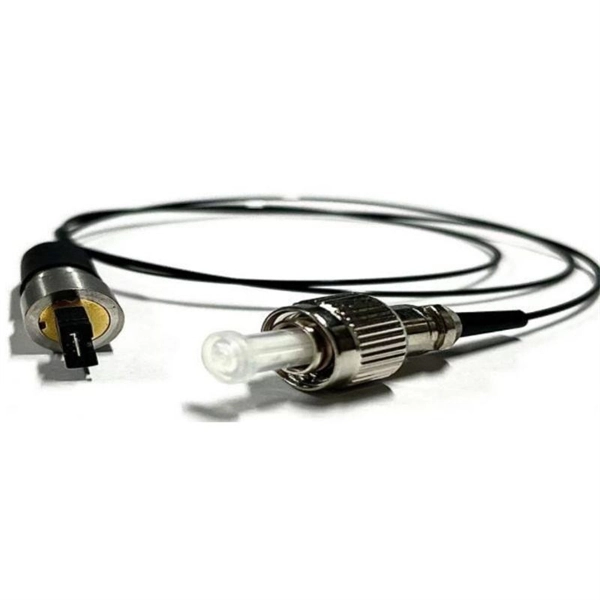

Characteristics of Two Types of Fiber Optic Attenuators

Fiber optic attenuators are classified mainly as fixed or variable, with additional distinctions based on fiber type, connector type, and attenuation principle.Fixed vs. Variable Attenuators

• Fixed Attenuators: Provide a constant, unchanging level of signal reduction, typically expressed in decibels (dB), such as 1 dB, 5 dB, or 10 dB. They are commonly used in permanent installations to prevent receiver overload and maintain signal balance. Fixed attenuators can be in-line (integrated into patch cables) or connectorized (bulkhead adapters) and are widely used in single-mode and multimode systems .
• Variable Attenuators (VOA): Allow adjustable attenuation within a specified range, either continuously or in steps. They are ideal for testing, calibration, or links requiring precise tuning. Adjustment can be mechanical (wheel or screw) or electronic, and some models allow step-wise changes by exchanging absorber elements .

Single-Mode vs. Multimode

• Single-Mode Attenuators: Primarily used in long-haul or DWDM networks where high-power transmitters can saturate receivers. They are the most common type in professional telecom applications .
• Multimode Attenuators: Used with multimode fiber systems, though less frequently, as multimode sources rarely produce enough power to require attenuation .

Attenuation Principles

• Absorptive Attenuators: Reduce signal power by absorbing excess light, similar to sunglasses filtering sunlight .
• Reflective Attenuators: Use partial reflection to reduce signal strength, though they may introduce back reflections if not carefully designed .
• Gap-Loss Attenuators: Introduce a small air gap between fibers, causing light to spread and lose intensity before entering the receiving fiber .
• Microbend, Acousto-Optic, and Electro-Optic Attenuators: Specialized methods where microbends induce loss, or sound/electric fields modulate light amplitude for precise attenuation control .

Connector Types

Fiber optic attenuators are available with various connectors to match system requirements, including LC, SC, ST, FC, MU, E2000, MTRJ, and MPO. Connectorized attenuators allow easy integration into patch panels or directly into equipment .

Summary

When selecting a fiber optic attenuator, consider:

• Fixed vs. variable depending on whether the attenuation needs to be adjustable.
• Single-mode or multimode based on the fiber type.
• Connector compatibility with your network.
• Attenuation principle to ensure minimal back reflection and signal integrity. These classifications ensure that optical power is properly managed, protecting receivers and maintaining optimal network performance .
